The High Performing New ECR25 Electric Compact Excavator

The Volvo ECR25 Electric excavator is a true game changer. The first in a new range of electric compact excavators, it takes a proven concept – and then adds battery electric power, so you’ll have all the performance you need, in the compact package you demand. Volvo CE is moving towards a brighter, more sustainable future, and now you can too.


Operating weight5,908 - 6,129 lbs
Maximum digging depth (short/long arm)8′ 1″ - 9′ 1″ ft in
Maximum dump height (short/long arm)9′ 2.0″ - 9′ 8″ ft in
Travel speed, low / high1.49 / 2.8 mph
Breakout force5,020 lbf
Tear out force (arm breakout force) (short/long arm)3372 - 3993 lbf
Overall width5′ 1″ - 0″ ft in
Overall length (short/long arm)12′ 9″ - 13′ 2″ ft in
Main hydraulic pump max. flow15.3 gal/min
Electric motor (peak)24 hp
Battery voltage48 V
Battery capacity20 kWh
On board charging time 230 VAC 16A~ 5 h
Sound pressure level (LpA) at operator's position74 dB
Sound power level (LWA) around the machine84 dB
Indicative runtime (depending on application)Up to 4 hours

Images for illustration purposes only. Production machines may differ in appearance and features; they may vary between markets and models. Specifications may change without prior notice. No warranty is provided until the machine has been purchased.

Features & Benefits

Picture of Add Silence

Add Silence

Silence. Just the word envelops you in a sense of serenity. And now you and those around you can experience what happens when you start to add silence to a compact excavator. The new Volvo ECR25 Electric, helping build the world we all want to live in.

Picture of Add Clean

Add Clean

You can find a compact excavator on every street corner. Literally. And whilst this demonstrates what a useful tool they are, it also puts them in close proximity with those around. With the Volvo ECR25 Electric you combine the all-round abilities of a compact excavator with the benefits of zero emission electric power. The world will thank you for it.

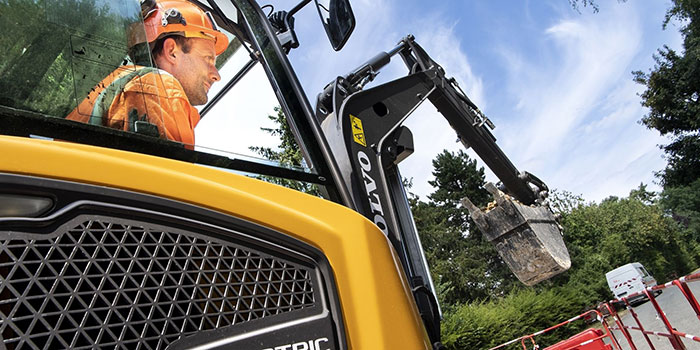

Picture of Add Comfort

Add Comfort

Comfort can mean many things to many people, but one constant is the reassurance it gives. For Volvo, comfort has always meant caring for the operator, and the ECR25 Electric takes this to a new level – so the operator can focus on the task in hand.

Bucket Options

Picture of Buckets

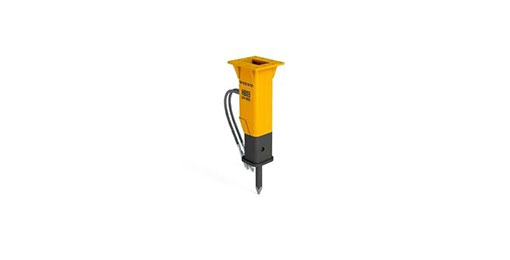

Picture of Hydraulic Breakers

Hydraulic Breakers

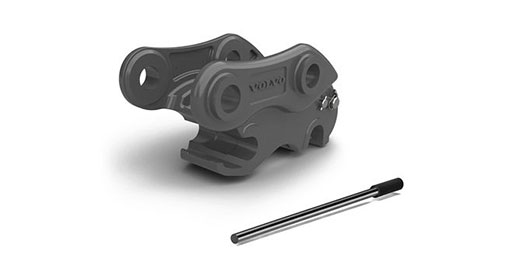

Picture of Quick Couplers

Quick Couplers
